ウエッジ用超音波振動子

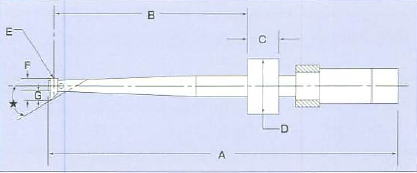

Standard Wedge Transducers

Model	Freq.	A	B	C	D	E	Tool	Drop	Wire Angle	Comments/Compatibility
3PTD	94.0	2.78in	1.389	0.342	0.600	0.0626	1.000	FOT*	45/60	Devoltech, Dias
18PT	63.5	4.32	2.315	0.590	0.500	0.6260	0.750	0.555	32/45/60	Shinkawa, Hybond
20PT	64.9	4.28	2.280	0.600	0.750	0.0626	0.437	0.250	30/60
21PT	55.5	5.20	2.740	0.800	0.750	0.1251	0.750	K&S	NA
22PT	62.1	6.09	4.076	0.600	0.750	0.0626	0.437	0.295	30/45	IBM, K&S4123
23PT	63.2	6.02	4.000	0.6000	0.750	0.0626	0.437	0.250	30/45	Westbond, K&S
24PT	63.5	4.32	2.315	0.600	0.750	0.0626	0.750	0.555	32/45
25PT	63.7	7.31	5.360	0.900	0.750	0.0626	0.828	0.450	30/45	Mei/Mechel
27PT	64.0	4.32	2.315	0.900	0.750	0.1251	0.750	0.265	OPTION	Devolte ch, K&S41, Shinkawa
28PT	61.5	4.49	2.375	0.600	0.750	0.0938	1.00	0.600	OPTION
29PT	61.5	4.32	2.315	0.600	0.750	0.1251	1.000	0.750	OPTION
30PT	61.5	4.32	2.315	0.600	0.750	0.1251	1.000	0.750	80
52PT	63.2	5.95	3.900	0.600	0.750	0.0939	0.437	0.250	30/45
53PT	63.4	5.97	3.810	0.900	0.750	0.1251	0.625	0.400	30/45
54PT	63.9	5.97	3.810	0.900	0.750	0.1251	1.000	0.767	30/45
254PTB	63.9	5.97	3.810	0.900	0.750	0.1251	1.000	0.767	30/45	Devoltech
254PTC	63.9	5.97	3.810	0.900	0.750	0.1251	1.000	0.767	30/45	For &gt15 mil wire
62PT	63.7	6.00	3.840	0.600	0.750	0.0626	0.437	0.243	30/45	Shin-Me-Hua, Anz
63PT	63.7	5.91	3.840	0.600	0.750	0.0626	0.828	0.460	30/45
70PT	63.9	4.32	2.315	0.900	0.747	0.0626	0.750	0.555	32/60	K&S4123, ASM

Lightweight Wedge Transducers

Model	Freq.	A	B	C	D	E	Tool	Drop	Wire Angle	Comments/Compatibility
3PTL	100.0	2.78in	1.389	0.342	0.600	0.0626	0.540	0.400	30	Dias
17PTL	63.5	4.32	2.315	0.600	0.500	0.0626	0.750	0.450	32/60
70PTL	63.4	4.20	2.315	0.600	0.750	0.0626	0.828	0.250	30/60	ASM, Shin-Me-Hua

Heated Wedge Transducers

Model	Freq.	A	B	C	D	E	Tool	Drop	Wire Angle
20HW	64.0	4.25	2.280	0.600	0.750	0.0626	0.437	0.250	30/60
23HW	61.7	6.03	3.935	0.600	0.500	0.0626	0.437	0.240	30/45/60
25HW	65.0	7.26	5.16	0.800	0.750	0.0626	0.828	0.450	30/45
31HW	61.5	6.03	3.935	0.600	0.750	0.0626	0.750	0.555	45/60
W2H290	61.5	4.32	2.315	0.600	0.750	0.1251	1.000	0.750	OPTION

High Frequency Wedge Transducers

Model	Freq.	A	B	C	D	E	Tool	Drop	Wire Angle	Comments/Compatibility
W5S18B	138.0	4.3in	2.315	0.590	0.500	0.0626	0.750	FOT*	32/45/60	Shinkawa, Hybond
W5S180	136.0	4.35	2.315	0.590	0.500	0.0626	0.750	FOT*	32/45/60	Shinkawa, Hybond
W4S031	107.0	4.33	2.315	0.590	0.500	0.0626	0.750	FOT*	32/45/60	Shinkawa, Hybond
W3S031	98.5	26780	1.389	0.342	0.600	0.0626	1.000	FOT*	45/60	Devoltech, Dias
W4S110	136.0	4.98	2.378	0.515	0.500	0.0626	0.828	0.555	32/45/60	Shinkawa, US
